| Model | BH-601D | BH-602D | BH-603D | BH-602T |
| Temperature Range | RT+10ºC to 200ºC | RT+10ºC to 200ºC | RT+10ºC to 200ºC | RT+10ºC to 200ºC |
| Control | Digital | Digital | Digital | Digital, Dual Control |
| Max. Block Number | 1 | 2 | 3 | 2 |
| Temperature Stability | ±0.1ºC | ±0.1ºC | ±0.1ºC | ±0.1ºC |
| Temperature Maximum Variety between Identical Blocks @ 50ºC | ±0.2ºC | ±0.2ºC | ±0.2ºC | ±0.2ºC |
| Power Supply | 230V, 50Hz or 110V, 60Hz | 230V, 50Hz or 110V, 60Hz | 230V, 50Hz or 110V, 60Hz | 230V, 50Hz or 110V, 60Hz |
| Dimension | 285×200×110mm | 305×230×110mm | 305×290×110mm | 305×290×110mm |

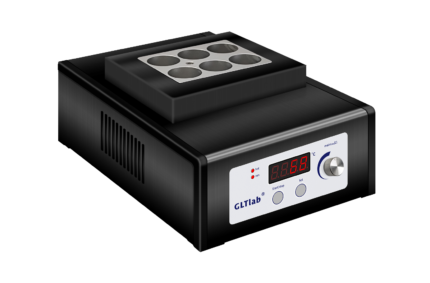

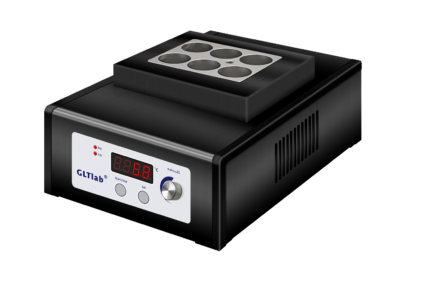

Block heater is designed for widely use in Chemical, Biochemical, Clinical and other General Labs for heating, digesting, incubating, concentrating and other heating processes.
The Block Heaters are digital types, They have higher temperature range (room temp+ 10C to 2 0 0 C ).
There are four different models of the block heaters: BH 601D; BH 602D ; BH603D; and BH 602T (twin control).
The Block Heaters have more sophisticate functions: Advanced PID controlled and calibration function. Calibration can be easily set up by adjusting the calibration screw in the side of the machine. After calibration, the display will reflect actual sample tubes or block temperature.
The BH 602T can separately control two different blocks with different temperature setting.
Various Block inserts can be chosen for different tubes and need to be ordered separately. The
BH 601D needs one block insert; BH602D, and 602T require two block inserts; BH 603D require three block inserts.
Al of the block heaters come with the block removal tool.
