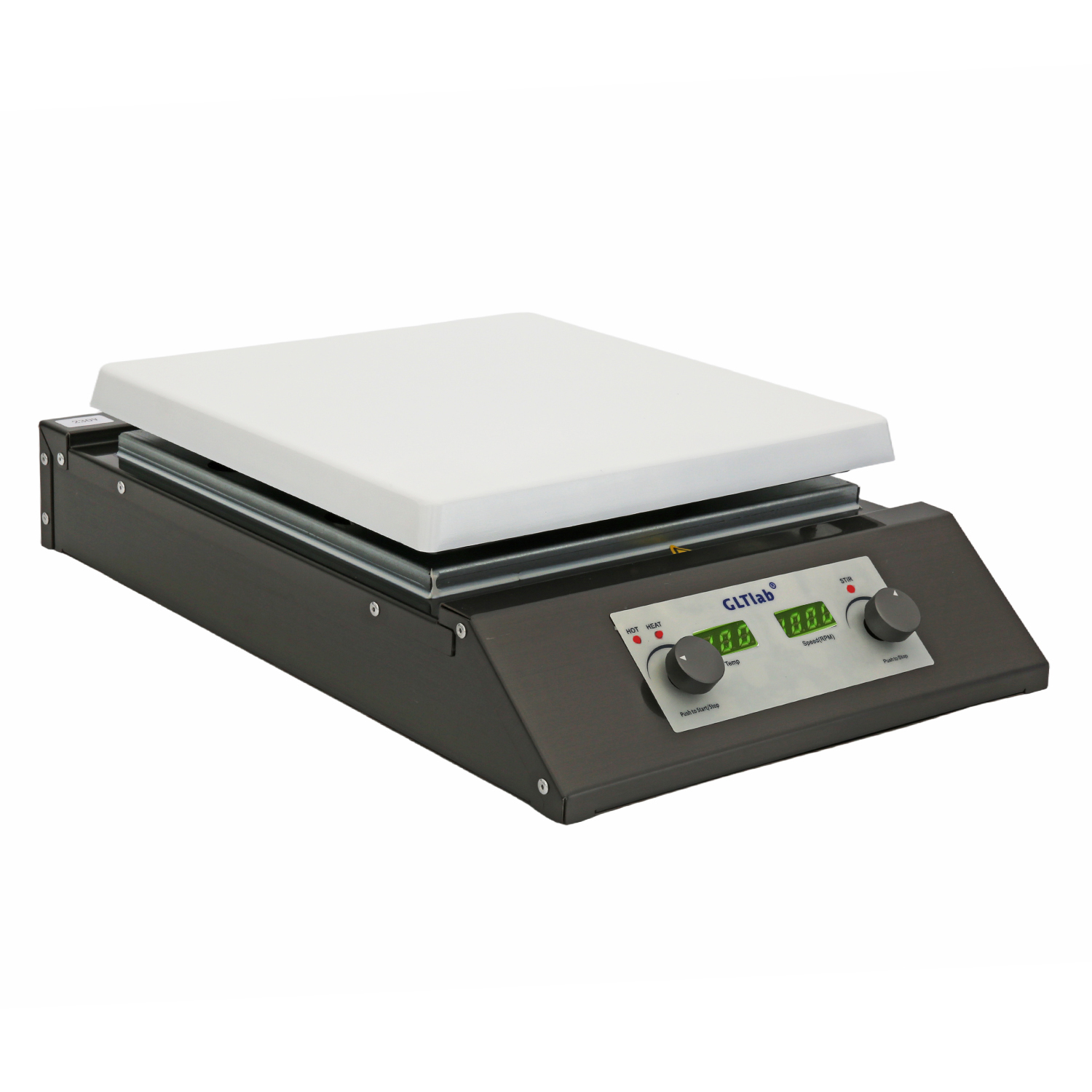

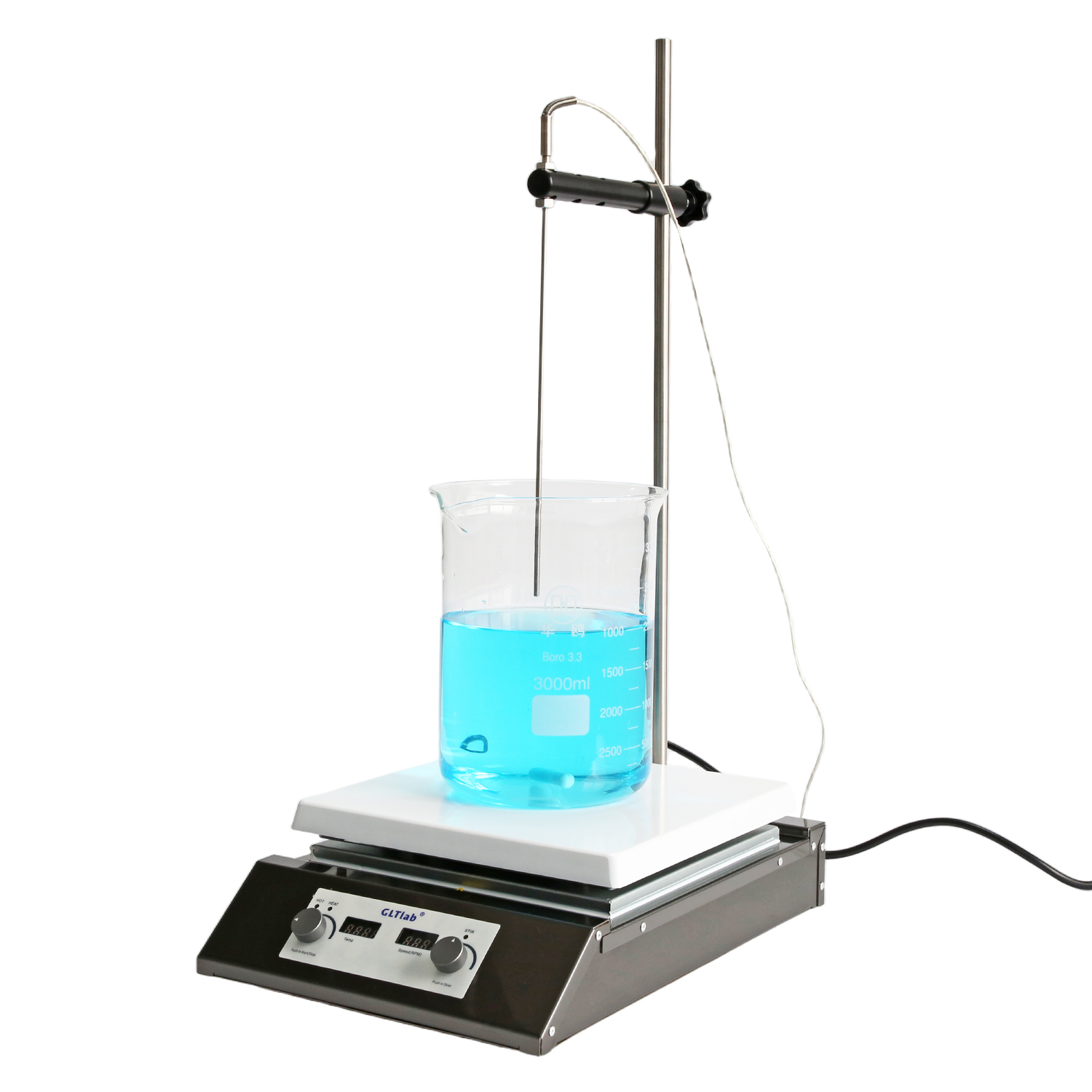

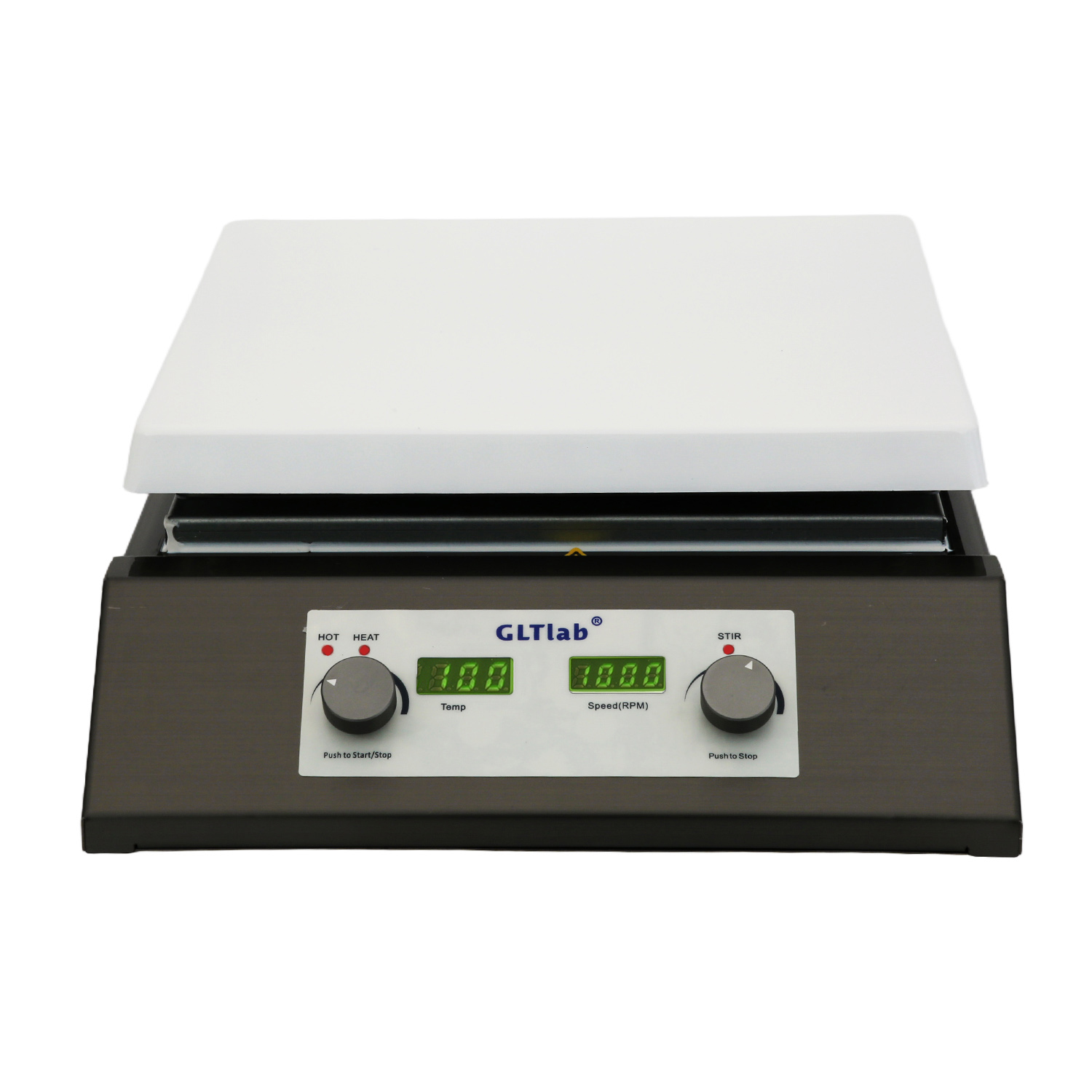

The GLTlab Stainless Steel Body heating magnetic stirrer with timing function. It is characterized by independently controllable heating and stirring timers, which can be utilized either in conjunction or separately. Additionally, it incorporates PID temperature control for precise regulation, features robust magnetic support to ensure stability, and achieves an IP42 water resistance rating, thereby enhancing laboratory safety.
| Item | Specification |
|---|---|
| Model | SHA‑10D |
| Control Mode | Digital numerical control（PID self‑tuning） |
| Working Plate Size | 10‑inch, 254 × 254 mm |
| Plate Material | Ceramic‑coated cast‑aluminum |
| Housing Material | Stainless‑steel |
| Max. Plate Heating Temp | 400℃ |

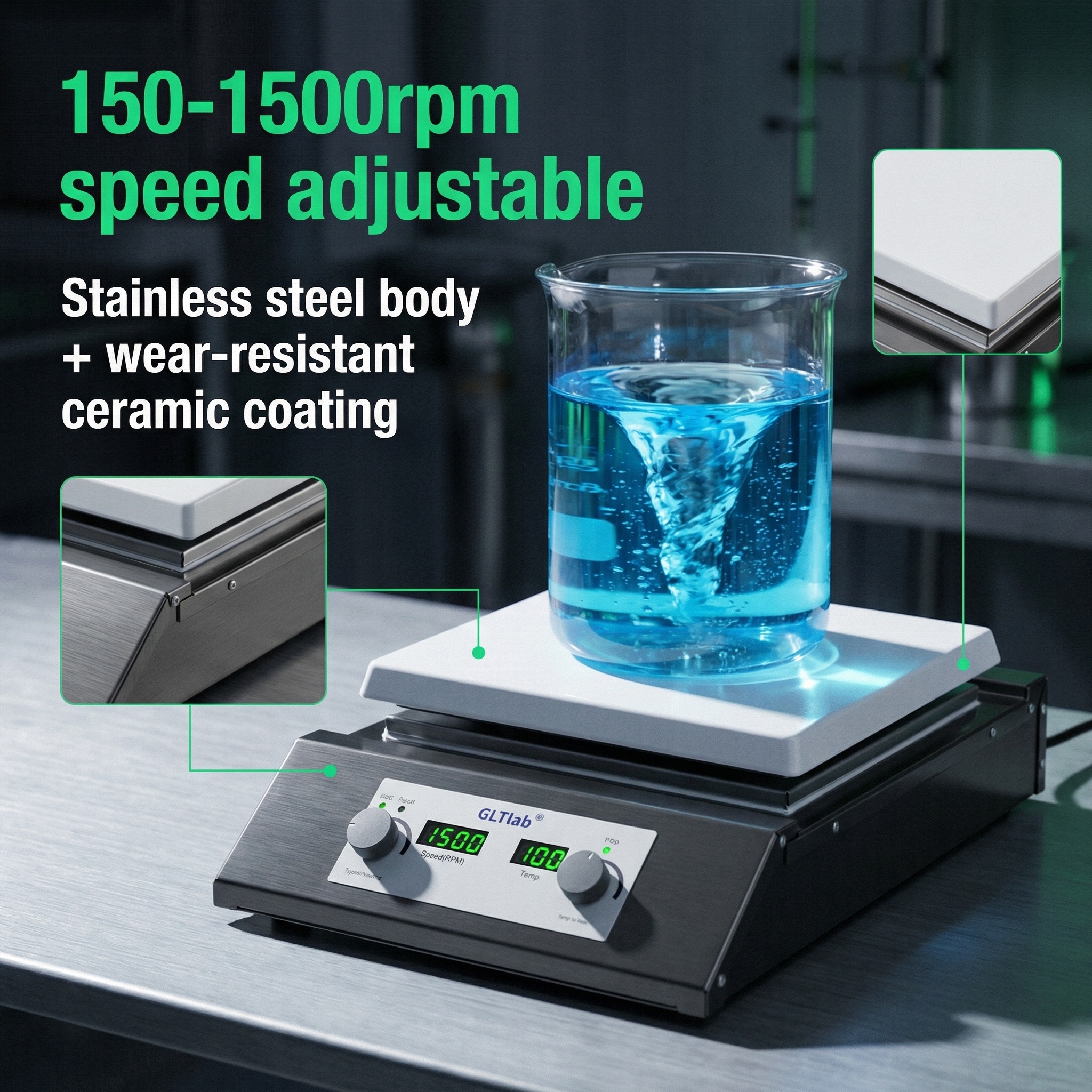

| Stirring Speed Range | 150‑1500 rpm |
| Speed Accuracy | ±5 rpm, closed‑loop constant speed |
| Max. Stirring Capacity(Water) | 20 L |
| Heating Power | 1600 W |
| Stirring Motor Power | 60 W |
| Temperature Sensor | PT100 Platinum resistance |
| Communication Interface | RS485, Modbus‑RTU |
| Power Supply | AC100‑240V,50/60Hz |
| Overall Dimension(L×W×H) | 290 ×360×110 mm |
| Custom Service | OEM & ODM Available |
Features:
‑ 254×254 mm 10‑inch ceramic‑coated cast‑aluminum working plate, good chemical‑resistance & uniform heating ‑ Stainless‑steel housing, anti‑corrosion, easy cleaning ‑ Digital PID self‑tuning temperature control, closed‑loop constant‑speed stirring ‑ PT100 temperature sensor for stable heating performance ‑ RS485 Modbus‑RTU communication for remote PC control ‑ Hot‑surface warning protection for laboratory safety ‑ OEM & ODM customization available
Applications:

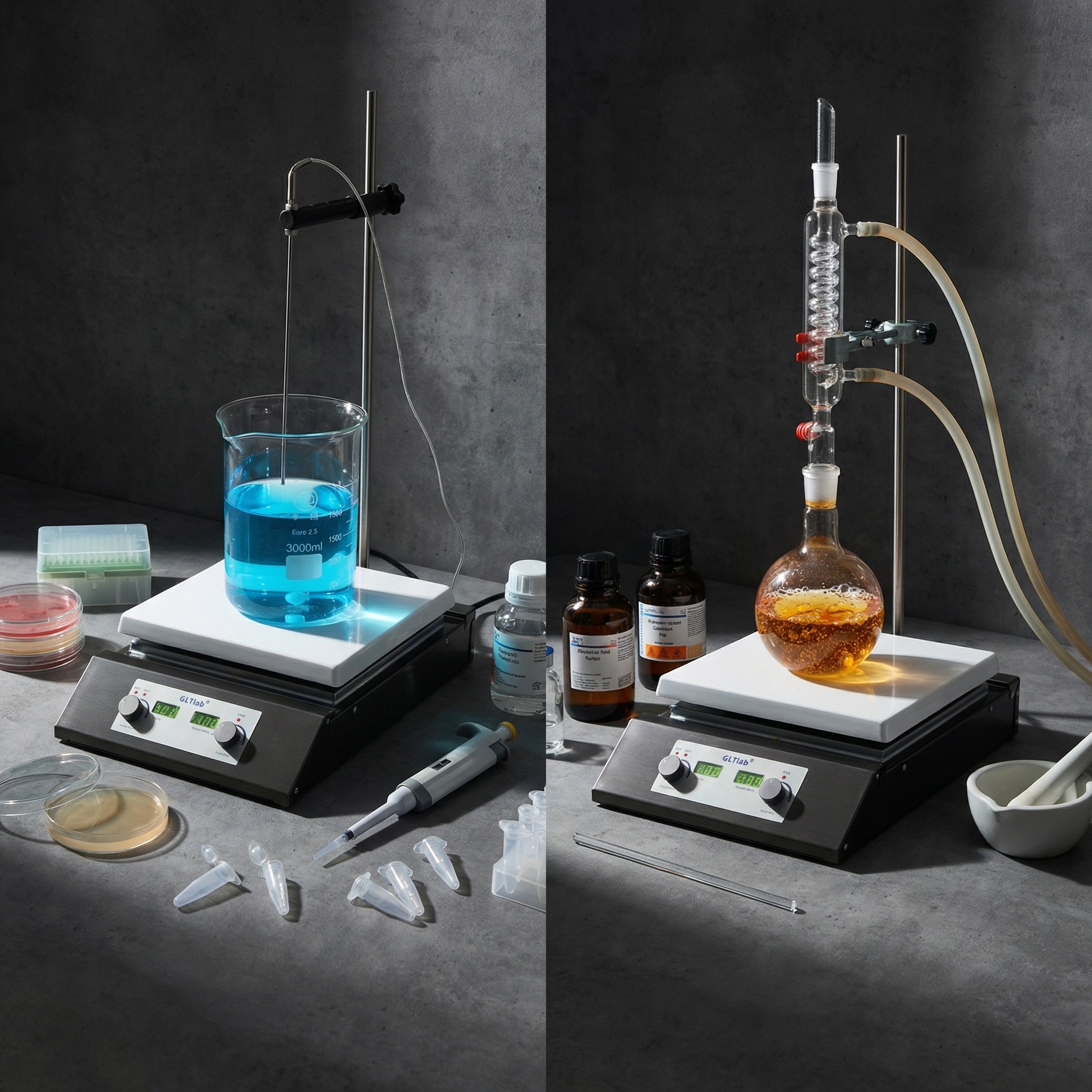

Widely used in chemistry labs, biological laboratories, pharmaceutical R&D, university teaching experiments. Suitable for reagent dissolving, sample pretreatment, medium preparation and chemical reaction stirring.
