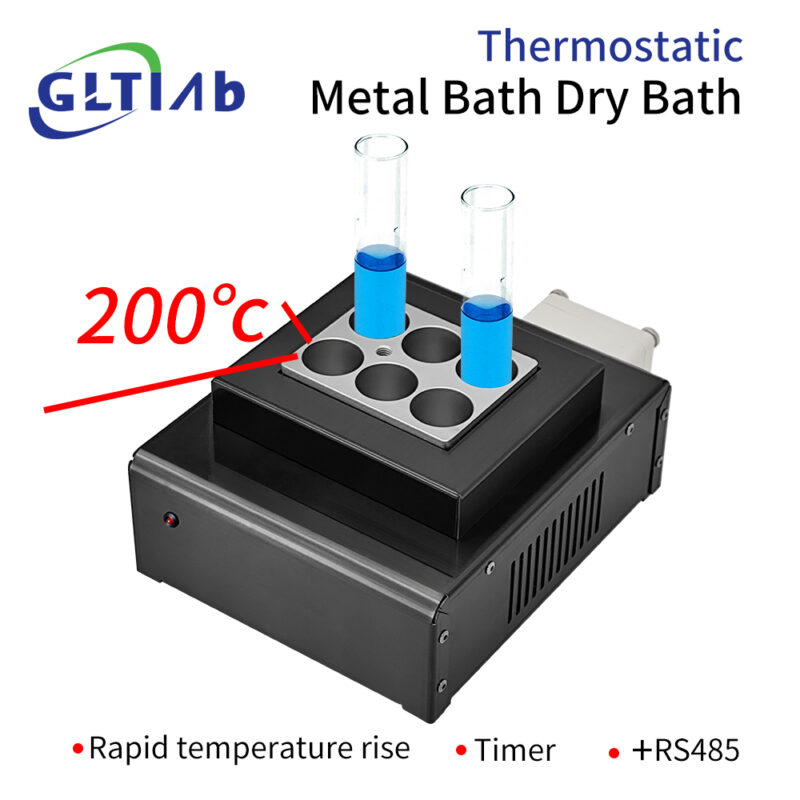

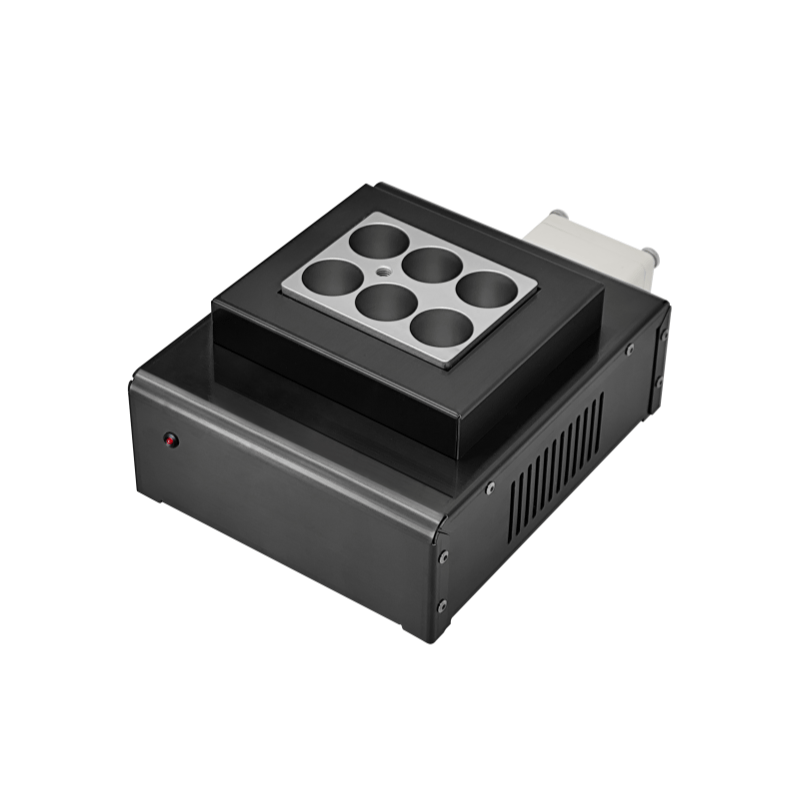

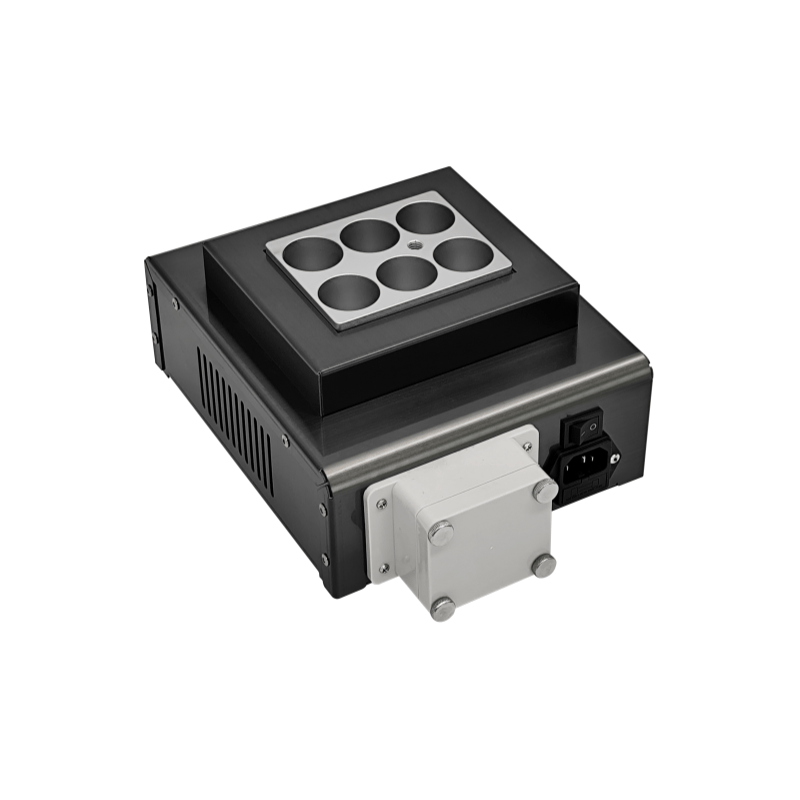

Thermostatic Analog Dry Bath

A thermostatic dry bath with potentiometer control and dual-feedback functionality is a high-precision temperature-control device commonly used in laboratories.

• High Temperature-Control Accuracy
  The dual-feedback function provides real-time monitoring and adjustment, while the potentiometer allows precise temperature setting. Together, they deliver high control accuracy with minimal error.

• Excellent Stability
  The negative-feedback mechanism gives the system self-regulating capability, effectively suppressing temperature fluctuations. Even under external environmental changes or internal parameter drift, the system maintains stable temperature output.

• Easy Operation
  The potentiometer is simple to operate. Users can set the temperature easily by rotating or sliding it—no complicated procedures required.

•

•

  Item	Specification

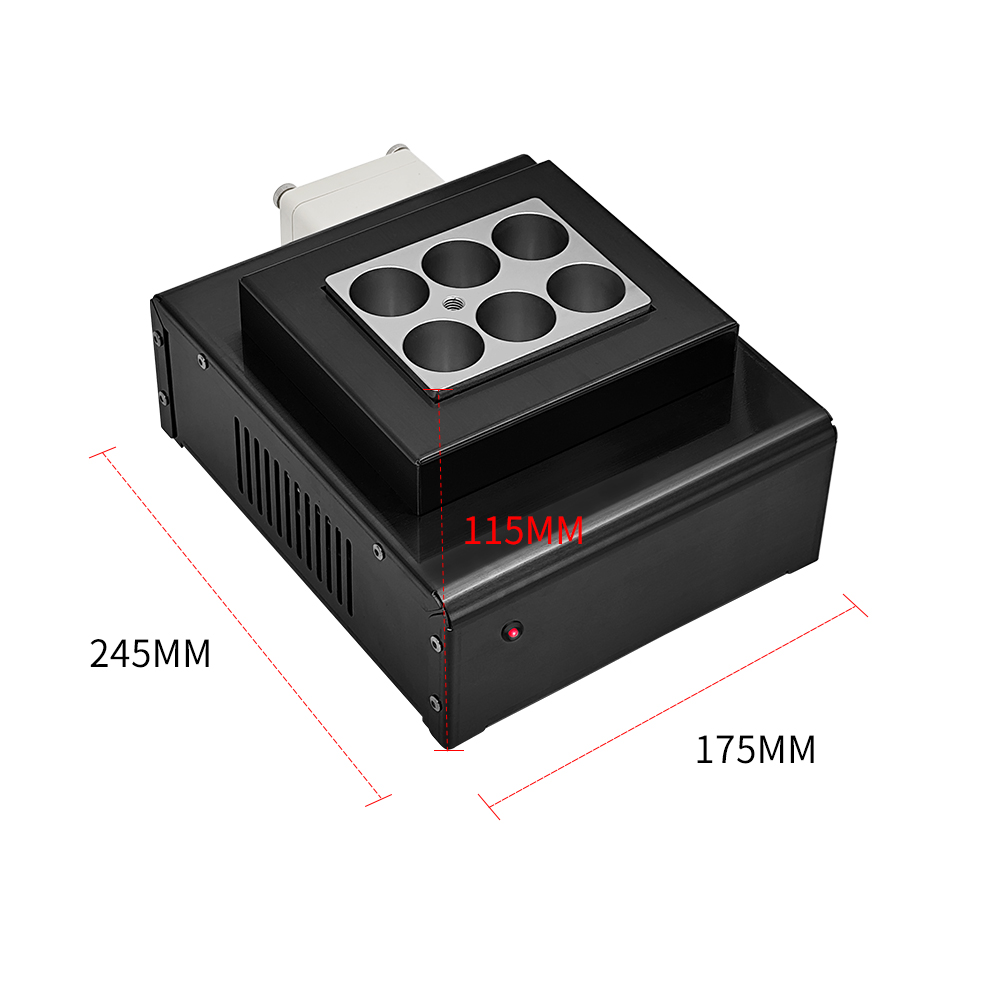

  Product Size	17.5W × 23L × 10H (cm)
  Aluminum Block Size	75W × 95L × 50H (mm)
  Heating Temperature	35–200°C
  Housing Material	Stainless Steel
  Power Supply	230V 50Hz or 110V 60Hz
  Power	260W

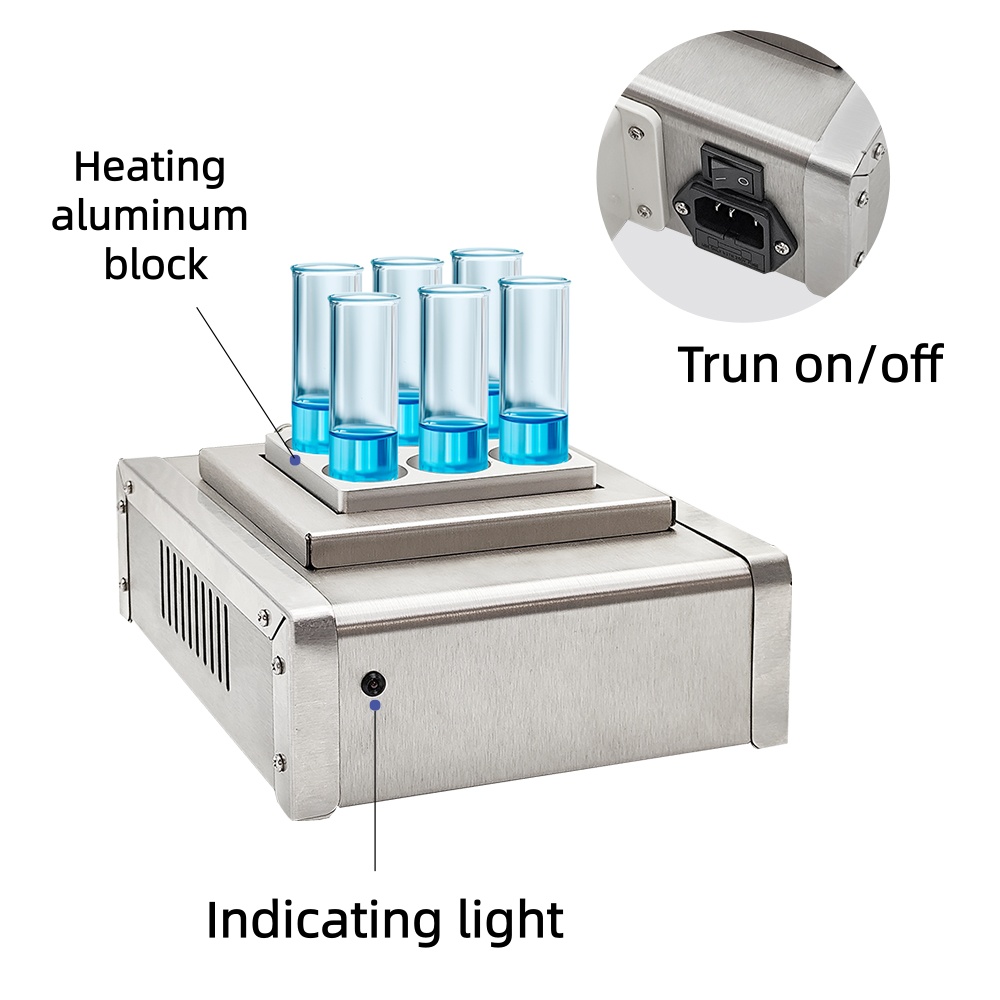

  Heating Indicator Light	Yes
  Constant Temperature Indicator	Yes (red light stays on when entering constant-temperature mode)
  Temperature Calibration	Yes
  Heating Mode	Fast heating
  Control	Potentiometer control
  Temperature Switching	Yes (via temperature selector)
  Net Weight	1.4 kg (without aluminum block)
